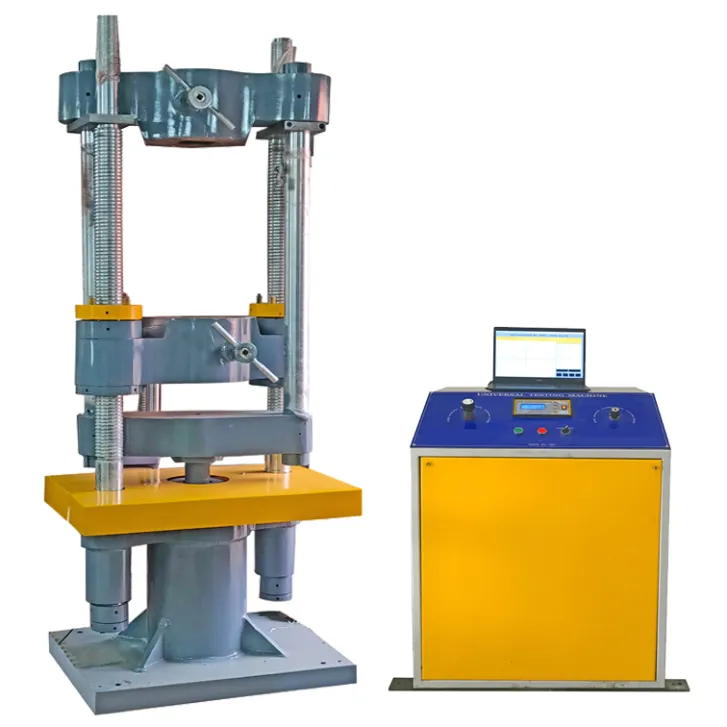

UNIVERSAL TESTING MACHINE (UTM)
Key Benefits of Our UTM
Using our universal testing machine is beneficial for industrial businesses to make clear assessments regarding material quality and its impact on manufacturing or other processes.
- With the results produced by this machine, manufacturers can identify defective pieces before or after mass production.
- The models are well equipped with motors and automatic stops. It helps adjustment and reaches the initial position automatically.
- Accurate and measurable results are obtained for the engineers, not just visual inspections alone.
- A wide range of materials can be tested, including metals, alloys, concrete, polymers, rubbers, textiles, and many more.
- Software-based analysis with clear graphical representation of load vs displacement, load vs time and stress vs strain.
Tests Performed With UTM
The universal testing machine by Peak Technology can be used for these tests under controlled forces:
- Tensile strength test
- Compressive Strength Test
- Flexural Testing
To test the specimen, it is placed within grippers, and a controlled force is applied using an electromechanical system. The in-built sensors record the behaviour of the material under the applied load, examining how much it is displaced, in what time, etc.
TECHNICAL SPECIFICATIONS
- Designed with different capacities (upon user’s request) such as: 400 kN (40 tons) / 600 kN (60 tons) / 1000 kN (100 tons)
- Power Supply: 220 – 240 V / 50 – 60 Hz (110 V / 60 Hz is also available)
Technical Features
- Multiple capacities are offered based on testing requirements. Some of the general capacities are 40, 60 and 100 tons.
- Pressurized fluid or electrically driven mechanisms are used to generate force.
- Computer based controls let operators adjust the load and other parameters.
- High resolution for accurate load and displacement measurements.
- Grips for tensile tests, plates for compression tests to support the specimen.
Why Our UTM
Peak Technology has immense experience and expertise as universal testing machine manufacturers. We recognize the need for accurate test results in various industrial processes. Our UTM is designed to meet diverse needs, such as assessing material quality, minimizing errors in production or meeting safety standards. Our team understands each client’s requirements and delivers a suitable model.
